The Power Take-off System of this 4x2, 26m-Insulated Bucket Truck features an electromagnetic power take-off with a direct connection to the gearbox, providing efficient power transfer to support operations.

The Work Platform measures 1000x700x1000(mm) is made from fiberglass, designed to hold two people and withstand pressures up to 35/46 kV. It's equipped with a multi-function three-axis handle for complete directional control, enabling movement in all directions, including upper and lower arm adjustments, extension and retraction, and platform rotation. Additional safety features include a hydraulic ±100° rotation capability, vertical dumping, and an emergency stop, with a rated load capacity of 320 kg.

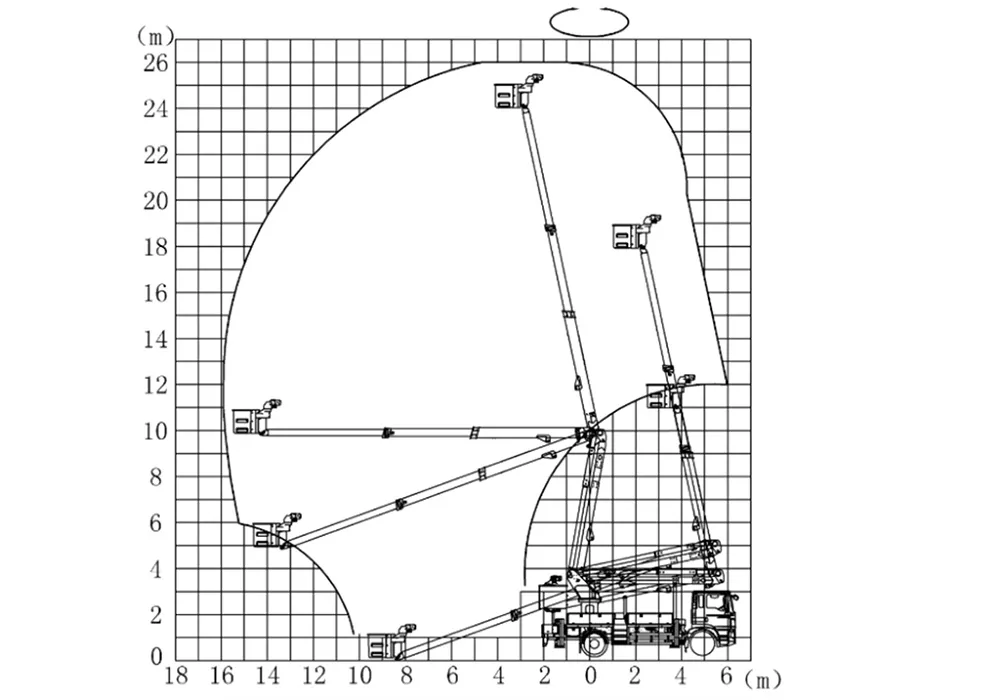

For the Boom Type, the truck utilizes a combination of one folding arm and three telescopic arms, which work with a rotating device capable of continuous 360° rotation, allowing flexible reach and positioning.

The Outriggers are H-shaped and adjustable, with automatic leveling and single-sided operation, enhancing stability. A dual hydraulic operating system enables precise control of both platform and descent functions.

An Electro-hydraulic Proportional Control System ensures a steady, continuous power supply to the platform, supporting prolonged operations without interruptions.

Safety Devices include outrigger support detection, interlocking between the working arm and outriggers, an emergency electric hydraulic pump, an emergency stop button, a vehicle level tester, and a safety harness, ensuring a secure work environment.

The truck's Leveling System is a master-slave hydraulic design for smooth platform leveling.

Other Features include engine ignition and shutdown controls at the platform, a hydraulic tool interface, an FRP platform protective cover, hydraulic adjustments for boom amplitude and rotation, and a platform lifting device.
